Diamond Grade ( DG³) Reflective Sheet
Additional information
| Color | Black, Blue, Brown, Fluorescent Yellow-Green, Green, Orange, White, Yellow |
|---|
Guaranteed safe checkout
Description

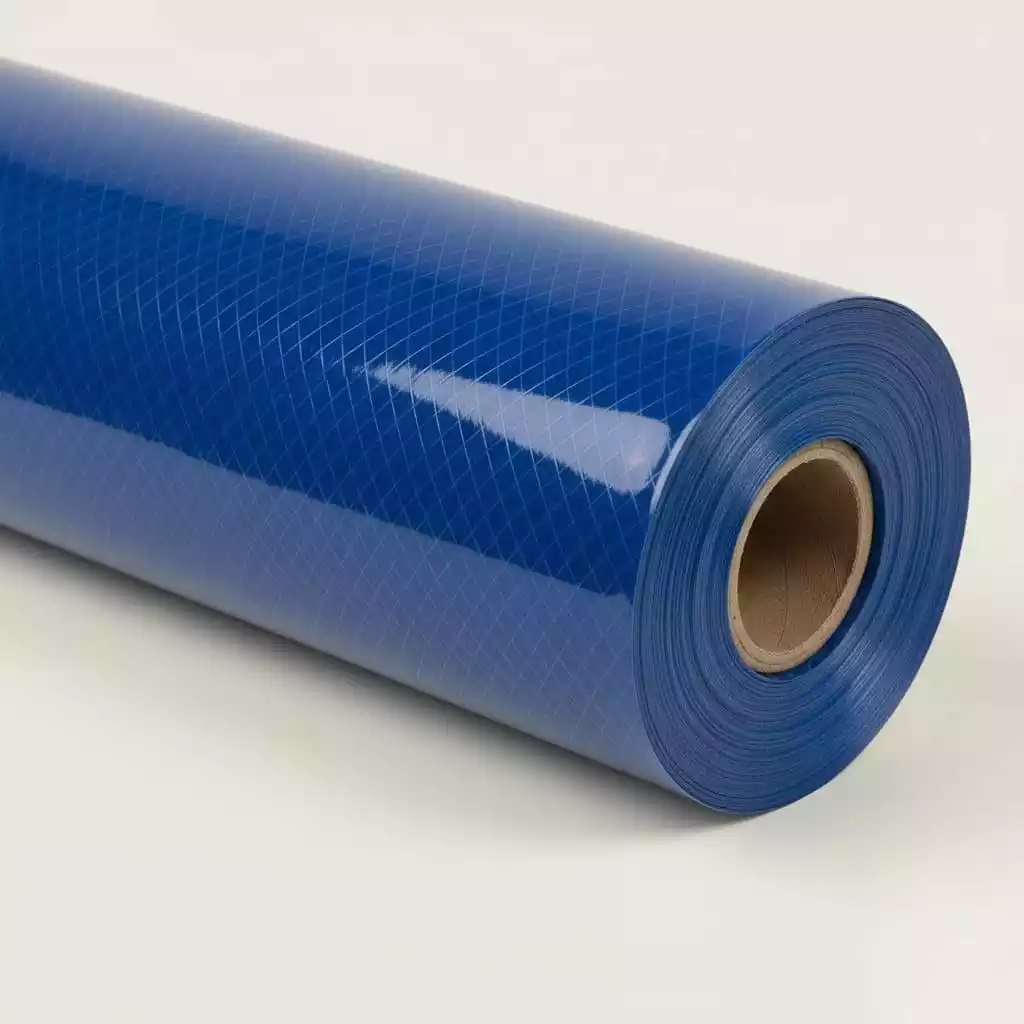

Ruina5000 Diamond Grade Prismatic Reflective Sheeting
Ruina5000 is a premium full-cube prismatic (non-metallized) reflective sheeting thatconforms to ASTM D4956 Type XI / EN 12899-1 RA3 level. The parameters below are theminimum guaranteed coefficient of retroreflection values, aligned with the requirements of these standards.
- Colors included: White, Yellow, Red, Green, Blue, Fluorescent Yellow-Green (FYG), Brown, Fluorescent Orange (FO), Black (Note: Black is typically achieved via non-reflective printing/ink on a white base; standard Type XI / RA3 sheeting has no dedicated black reflective film, with retroreflection near zero in black areas).
- Test conditions: CIE Standard Illuminant A, co-planar geometry, observation angles as listed, entrance angles as shown (–4° equivalent to +5° in some EN/ASTM contexts).
- Unit: cd/lx·m²
- Values are minimums per ASTM D4956 Type XI (Ruina5000 conforms to or exceeds these; actual performance often higher, e.g., white typically 580–710+).
Retroreflection Performance Table (Minimum Coefficient of Retroreflection)
| Observation Angle | Entrance Angle | White | Yellow | Red | Green | Blue | Fluorescent Yellow-Green | Brown | Fluorescent Orange | Black (printed/overlay) |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.2° | –4° | 580 | 435 | 87 | 58 | 26 | 460 | 30 | 175 | <5 (near zero) |
| 0.2° | +15° | 348 | 261 | 52 | 35 | 16 | 276 | 18 | 105 | <3 |
| 0.2° | +30° | 220 | 165 | 33 | 22 | 10 | 180 | 11 | 68 | <2 |
| 0.33° | –4° | 400 | 300 | 60 | 40 | 18 | 336 | 20 | 120 | <4 |
| 0.33° | +30° | 150 | 113 | 23 | 15 | 7 | 126 | 8 | 45 | <1 |
| 0.33° | +40° | 100 | 75 | 15 | 10 | 5 | 84 | 5 | 30 | <1 |
| 1° | –4° | 90 | 68 | 14 | 9 | 4 | 76 | 4 | 27 | <1 |
| 1° | +30° | 40 | 30 | 6 | 4 | 2 | 34 | 2 | 12 | <1 |
Notes on colors:
- Fluorescent Yellow-Green (FYG) andFluorescent Orange (FO): Provide significantly higher daytime luminance/conspicuity; values match 3M DG³ fluorescent equivalents (e.g., FO typically lower than FYG but still high for orange family).
- Brown: Lower reflectivity due to darker color; values are approximate based on 3M DG³ brown (4099) typical performance (not always listed in minimum tables but compliant).
- Black: No reflective black sheeting exists in the standard DG³ lineup; black is achieved via printing/ink on a white base. Retroreflection drops to near zero (<5 cd/lx·m² at most angles); used for legends/borders only.
- All values conform toASTM D4956 Type XI minimums (white 580 at 0.2°/-4° is the benchmark); Lens5000 matches 3M Series 4000 exactly or exceeds in practice.
Chromaticity & Luminance Factor (Typical Values – Compliant with Type XI / RA3)
| Color | Chromaticity Coordinates (x, y) – Typical Range (4 Points) | Luminance Factor (β) |
|---|---|---|
| White | 0.305–0.345 | ≥ 0.35–0.40 |
| Yellow | 0.470–0.545 | ≥ 0.30 |
| Red | 0.610–0.735 | ≥ 0.03 |
| Green | 0.110–0.170 | ≥ 0.03 |
| Blue | 0.130–0.160 | ≥ 0.01 |
| Fluorescent Yellow-Green | Special fluorescent coordinates | ≥ 0.35 (daytime) |
| Brown | 0.455–0.558 (approx.) | 0.09 ≥ β ≥ 0.03 |
| Fluorescent Orange | 0.506–0.631 (approx.) | ≥ 0.14–0.20 |
| Black (printed) | N/A (non-reflective) | < 0.01 |
Other Key Properties (Same as 3M Series 4000)
- Technology: Full-cube prismatic (non-metallized).
- Durability: 10 years vertical exposure (retroreflectivity loss ≤50%).
- Thickness: ≈0.48 mm (excluding liner).
- Adhesive: Pressure-sensitive (PSA); apply at 18–28°C.
- Processing: Digital printing, screen printing, and plotter cutting.
- Orientation: Best at 0° (primary groove vertical) for wide-angle optimization.
This completes the full parameter set for Ruina5000 across all requested colors, directly comparable to 3M Diamond Grade DG³ Series 4000. If you need a downloadable
| Product SKU | Ruina5009 |
|---|---|
| UPC | 0000009 |
| Weight | 63.8lbs |
| Grade | Diamond Grade (DG³) |
| Case Qty | 1 |
| Quantity Per Roll | 52.1 sqm |
| Overall Length | 50yd (45.7m) |
| Width | 48in (1.22m) |
| Adhesive Type | Pressure Sensitive |
| Warranty | 5 Years |
