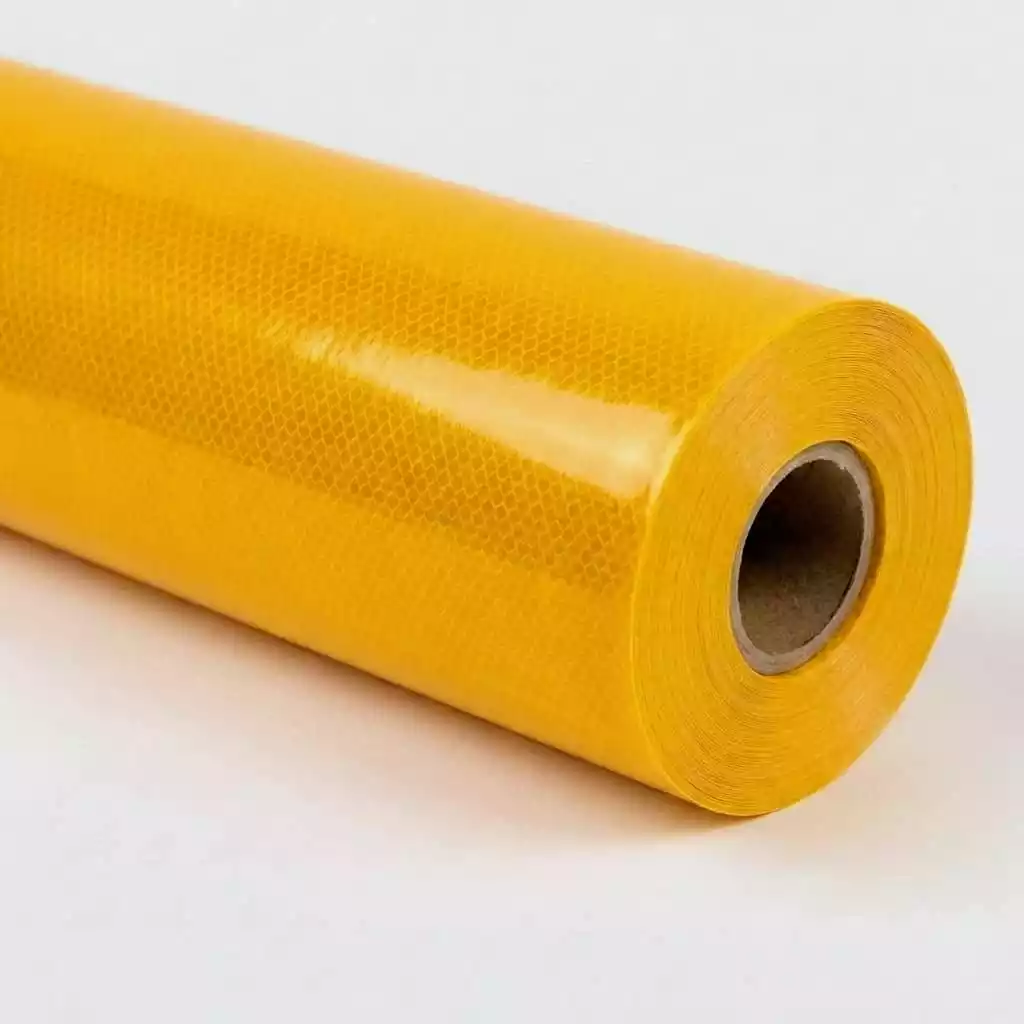

High Intensity Prismatic Reflective Sheet
Additional information
| Color | Blue, Brown, Fluorescent Yellow-Green, Green, Red, White, Yellow |
|---|
Guaranteed safe checkout
Description
Ruina4000 is a high-performance microprismatic (truncated cube/high-intensity prismatic, non-metallized) reflective sheeting thatconforms to ASTM D4956 Type IX / EN 12899-1 RA2 level. The parameters below are theminimum guaranteed coefficient of retroreflection values, aligned with the requirements of these standards (and matching or exceeding typical 3M Series 3930 performance in key angles).
- Colors included: White, Yellow, Red, Green, Blue, Fluorescent Yellow-Green (FYG), Brown (Note: Fluorescent Orange is not standard in this series for Ruina4000; Brown is included as per common availability in RA2 / Type IX equivalents).
- Test conditions: CIE Standard Illuminant A, co-planar geometry, observation angles as listed, entrance angles as shown (–4° equivalent to +5° in some EN/ASTM contexts).
- Unit: cd/lx·m²
- Values are minimums per ASTM D4956 Type IX (Ruina4000 conforms to or exceeds these; actual performance often higher, e.g., white typically 360+ at 0.2°/–4°).
Retroreflection Performance Table (Minimum Coefficient of Retroreflection)
| Observation Angle | Entrance Angle | White | Yellow | Red | Green | Blue | Fluorescent Yellow-Green | Brown |
|---|---|---|---|---|---|---|---|---|
| 0.2° | –4° | 360 | 270 | 100 | 55 | 40 | 290 | 25 |
| 0.2° | +15° | 265 | 202 | 80 | 50 | 35 | 212 | 15 |
| 0.2° | +30° | 170 | 135 | 45 | 26 | 20 | 135 | 8 |
| 0.33° | –4° | 250–300 (typical min 250) | 170–200 | 45–60 | 45 | 20 | 100–135 | 10 |
| 0.33° | +30° | 100–150 | 70–100 | 14–25 | 12–21 | 8–11 | 40–65 | 4 |
| 0.33° | +40° | 95–110 | 60–70 | 13–15 | 11–12 | 7–8 | 20–29 | 2 |
Color Notes:
- Fluorescent Yellow-Green (FYG): Provides significantly higher daytime conspicuity; values aligned with Type IX fluorescent yellow-green requirements (higher than standard yellow).
- Brown: Lower due to darker hue; values approximate based on RA2 / Type IX brown performance (compliant with minimums, typically 25–30 at critical angles).
- All values conform toASTM D4956 Type IX minimums (white 250 at 0.2°/+5° benchmark, with Ruina4000 often exceeding in wide angles).
- Fluorescent Orange is not standard in Ruina4000 (common in higher types like Type XI); if needed, refer to Ruina5000.
Chromaticity & Luminance Factor (Typical Values – Compliant with Type IX / RA2)
| Color | Chromaticity Coordinates (x, y) – Typical Range (4 Points) | Luminance Factor (β) |
|---|---|---|
| White | 0.305–0.345 | ≥ 0.27–0.35 |
| Yellow | 0.470–0.545 | ≥ 0.16 |
| Red | 0.610–0.735 | ≥ 0.03 |
| Green | 0.110–0.170 | ≥ 0.03 |
| Blue | 0.130–0.160 | ≥ 0.01 |
| Fluorescent Yellow-Green | Special fluorescent coordinates | ≥ 0.35 (daytime) |
| Brown | Approx. 0.455–0.558 | 0.09 ≥ β ≥ 0.03 |
Other Key Properties (Conforming to ASTM D4956 Type IX / EN 12899-1 RA2)
- Technology: Microprismatic (high intensity prismatic, non-metallized).
- Durability: 10 years vertical exposure (retroreflectivity loss ≤50%).
- Thickness: Approx. 0.48 mm (excluding liner).
- Adhesive: Pressure-sensitive (PSA); apply at 18–28°C.
- Roll Size: 0.61 m × 50 m or 100 m.
- Processing: Digital printing, screen printing, and plotter cutting.
- Orientation Recommendation: Excellent wide-angle; for multi-panel signs, apply all panels in the same orientation (90° or 0° recommended).
This provides the complete parameter set for Ruina4000 across the requested colors, strictly conforming to ASTM D4956 Type IX and EN 12899-1 RA2 levels. If you need expansions for other angles/colors (e.g., Fluorescent Orange via Ruina5000), printable tables, or comparisons, let me know!
| Product SKU | Ruina4002 |
|---|---|
| UPC | 0000011 |
| Color | Yellow |
| Weight | 63.8lbs |
| Grade | High Intensity Prismatic (HIP) |
| Case Qty | 1 |
| Quantity Per Roll | 52.1 sqm |
| Overall Length | 50yd (45.7m) |
| Width | 48in (1.22m) |
| Adhesive Type | Pressure Sensitive |
| Warranty | 5 Years |
